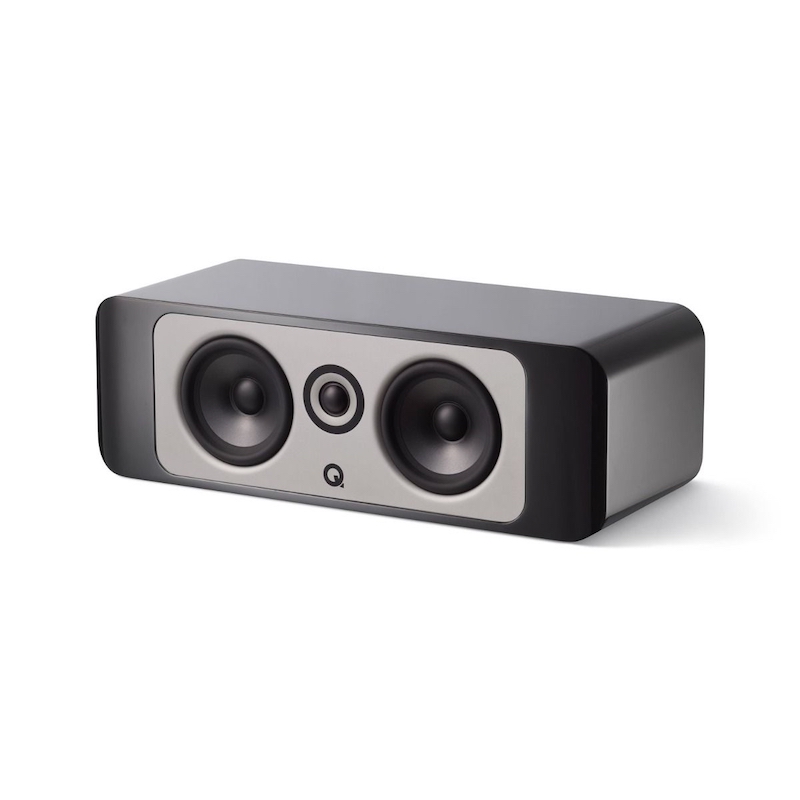

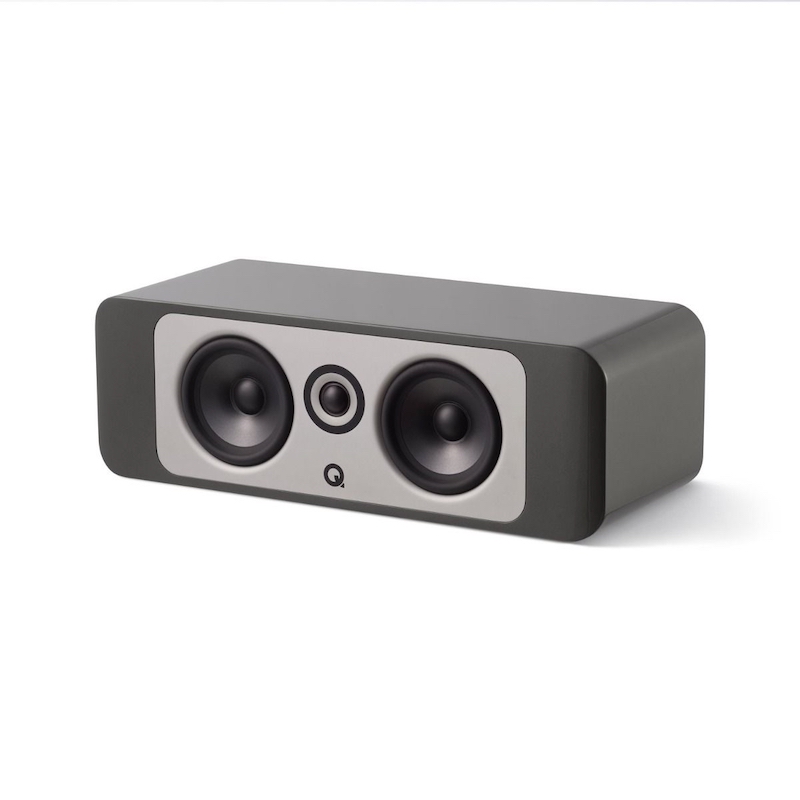

Q Acoustics Concept 90 Centre Speaker

MSRP: $1,499.99

At the heart of a Concept home theatre set-up, the Concept 90 is our most high-performance centre channel speaker yet. Able to deliver astonishingly dynamic and ultra-clear dialogue, this speaker is the star of the Concept home theatre series.

A centre channel speaker plays a crucial role to convey a realistic surround sound experience. More than just supporting the front left and right channel speakers, it features many anti-resonance technologies that appear in its Concept stablemates to deliver a focused but captivating theatre sound.

Black

Gloss Black

Gloss White

Gloss Silver

Model: Q Acoustics Concept 90 Centre Speaker Categories: , ,
Loading...

A centre channel speaker in a 5.1 home theatre set-up plays a crucial role to convey a realistic surround sound experience. More than just supporting the front left and right channel speakers, a centre channel anchors the dialogue while also seamlessly being part of the whole soundstage. As a key player in the Concept theatre system, the Concept 90 is our most advanced and striking centre channel speaker, featuring many anti-resonance technologies that appear in its Concept stablemates to deliver a focused but captivating theatre sound.

Concept 90 Home Theatre In White No Grille

Gelcore™ Cabinet Design

All these resonance eliminating innovations are housed in a Gelcore™ cabinet design to deliver a speaker low on interior influences that can colour the sound. It ensures the Concept 90 can dispatch crystal clear dialogue and improved depth of sound that will elevate the film watching experience. Introduced in the original Concept speaker, the Gelcore™ cabinet construction is designed to minimise high-frequency noise. A unique design comprised of a non-setting gel sandwiched between two individual layers, this specially developed adhesive dissipates high-frequency vibrations, generated by the moving drivers, into heat to maintain a focused audio performance, whether watching movies or listening to music.

Concept 90 Home Theatre In White No Grille

Controlled Power

Designed as an integral part of the mechanical structure of the cabinet, both the 5-inch mid/bass and 0.9-inch tweeter drivers are new, ground-up designs specifically for the Concept 30, 50 and 90 loudspeakers.

The drive units are fixed to a remarkably stiff 3mm aluminium baffle plate before it is fitted to the cabinet – this gives the correct acoustic seal, dampening vibrations and minimizing structural coupling.

Elsewhere, the tweeter is hermetically sealed and mechanically isolated (floating) from the baffle, which means lower distortion and a lower crossover point for seamless integration through the crossover region. At 30.5mm, the larger mid/bass driver voice coil increases motor strength resulting in a 50% increase in power handling over a comparable driver with 25.4 mm voice coil.

Matching the design profile of the Concept 30 and 50, the Concept 90 is available in three striking lacquers of Gloss Black, Gloss White and Gloss Silver. Designed to blend into any Concept speaker system you choose to assemble from the range. At the forefront of any surround sound set-up, this stylish centre channel will look at home perched on any cabinet in any interior space.

Colour

Gloss Black, Gloss Silver, Gloss White

Black

Gloss Black

Gloss White

Gloss Silver

  • Single
  • Bass Unit:  1 x 125mm / 5 Inches
  • Treble Unit: 1 x 25mm / 0.9 Inches
  • Frequency Response: 67 Hz – 30 kHz
  • Nominal Impedance: 6 Ω
  • Minimum Impedance: 3.7 Ω
  • Sensitivity 2.83V @ 1kHz: 90 dB/w/m
  • Recommended Power: 25-150 W
  • Crossover Frequency: 2.1 kHz
  • Distortion 120Hz – 20kHz, @2.83Vrms: <0.2%
  • Effective Volume: 11 L
  • Full Dimensions H/W/D: 184 x 550 x 259 mm /7.2″ x 21.7″ x 10.2″ Overall
  • Weight: 12.3 kg /27.1 lb Per Speaker
  • 1 x Concept 90 Speaker
  • 1  x Speaker Grilles
  • 2 x Foam Bungs
  • 1 x Owner’s Manual
