Q FS75 Speaker Stands

MSRP: $749.99

Inspired by the ground-breaking Tensegrity stand developed by Q Acoustics for its high-end Concept 300 loudspeaker, the Q Acoustics stand minimizes resonance from the floor to the speaker cabinet and vice-versa thanks to its remarkable low-mass, low-reflectivity design.

Additionally to its acoustic benefits, the Q FS75’s minimal design is the perfect visual complement to the unique styling and looks of the Q Active 200 & Concept 30 speakers.

Model: Q FS75 Categories: ,
Loading...

Inspired by the ground-breaking Tensegrity stand developed by Q Acoustics for its high-end Concept 300 loudspeaker, the Q FS75 stand minimizes resonance from the floor to the speaker cabinet and vice-versa thanks to its remarkable low-mass, low-reflectivity design. Additionally, the stand’s minimal design is the perfect visual complement to both the Q Active 200 and Concept 30 bookshelf speakers.

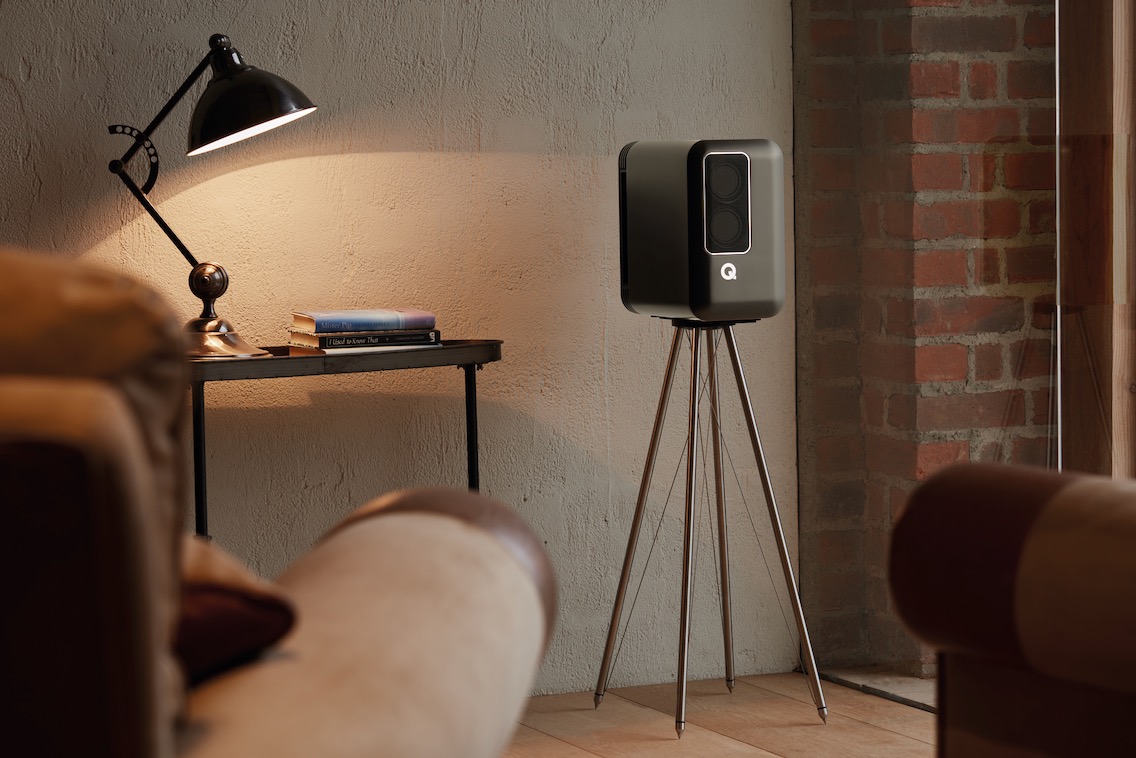

Q Active 200 Black Lifestyle

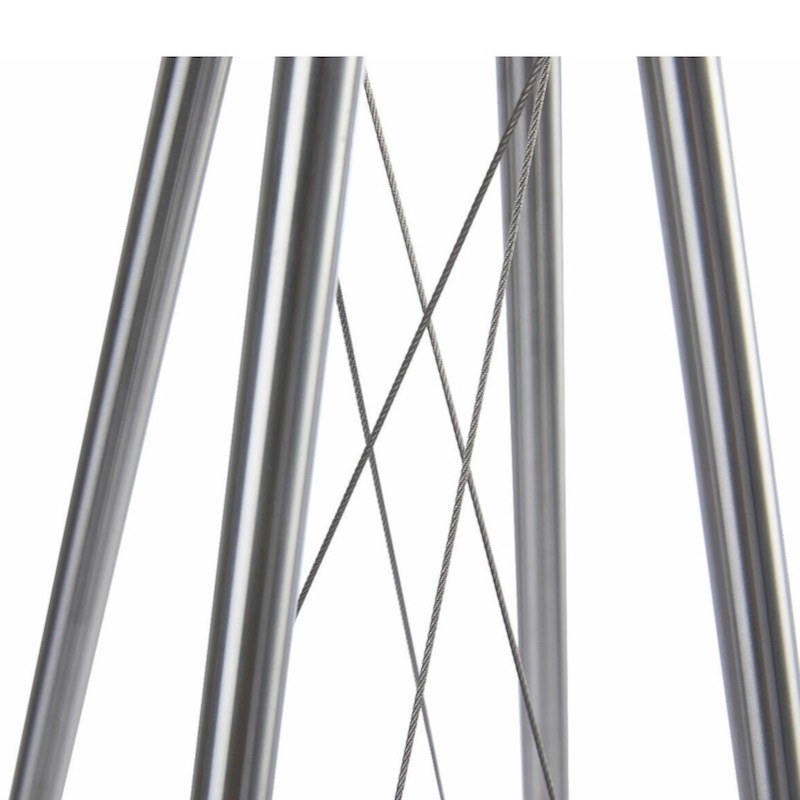

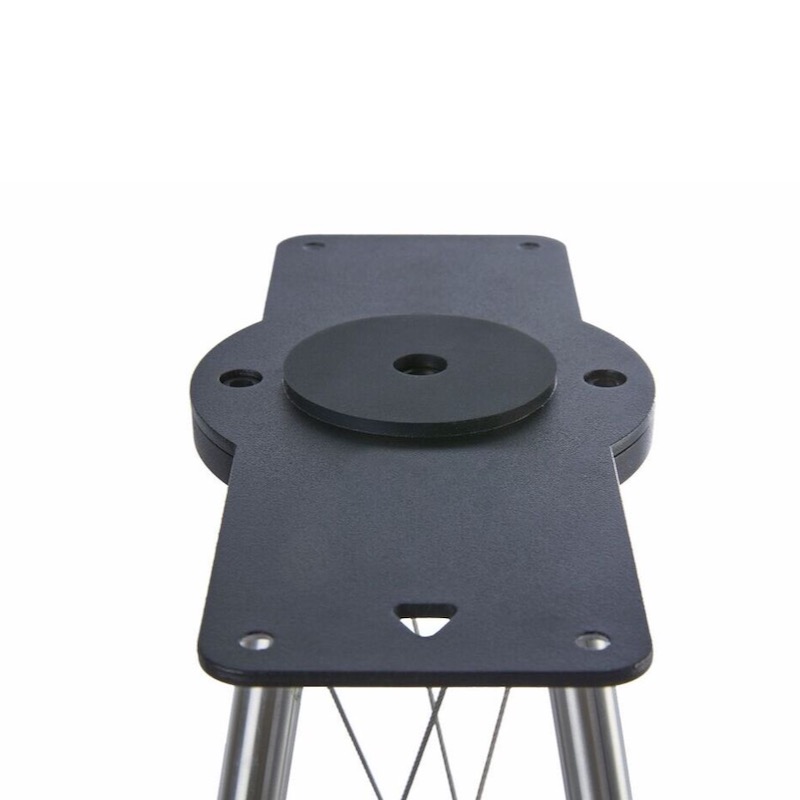

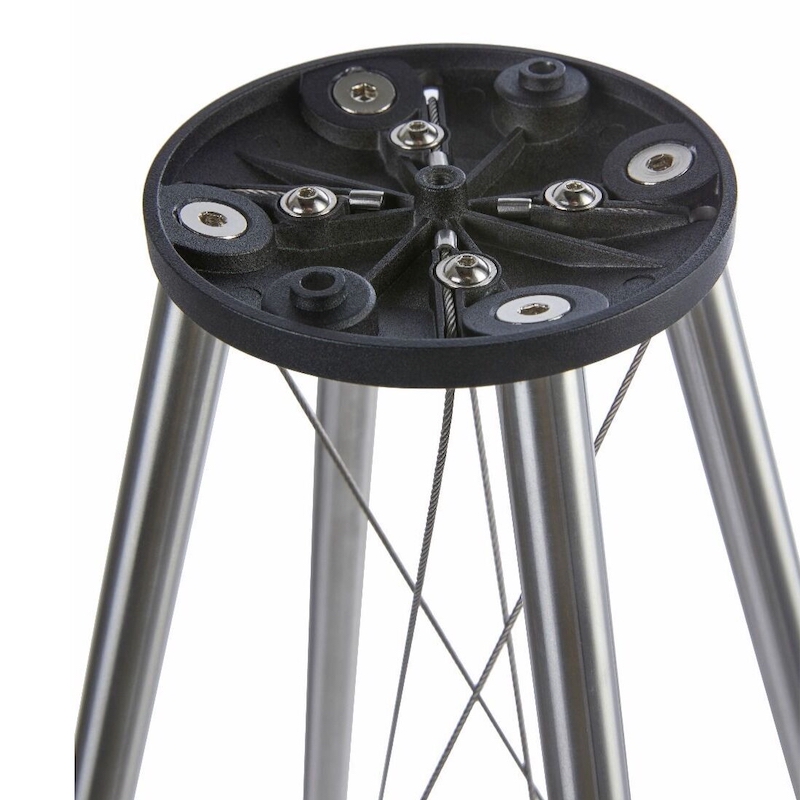

Our QFS75 has been designed specifically to partner with the standmount speaker, providing a stable mounting platform for the speaker with low resonance and minimal reflective surfaces. The base of the standmount speaker includes fixings to enable the stand to be bolted rigidly to the speaker. The striking design of the Q FS75 speaker stand adopts the principles of a space frame consisting of rods in compression stabilized by cables in tension. Important benefits of this arrangement lie in the skeletal, high rigidity construction that has minimal parallel or planar surfaces

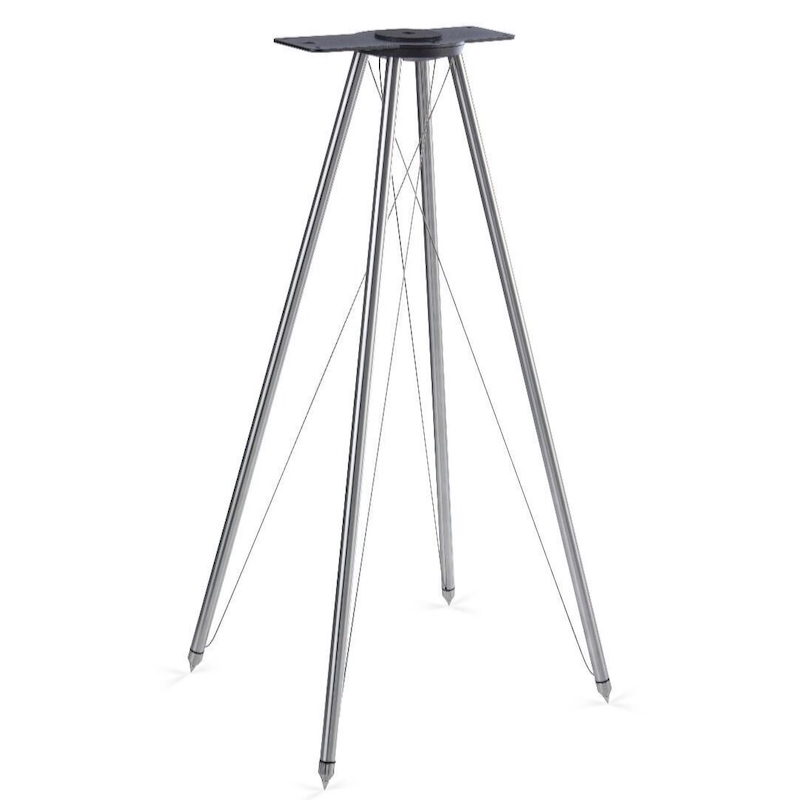

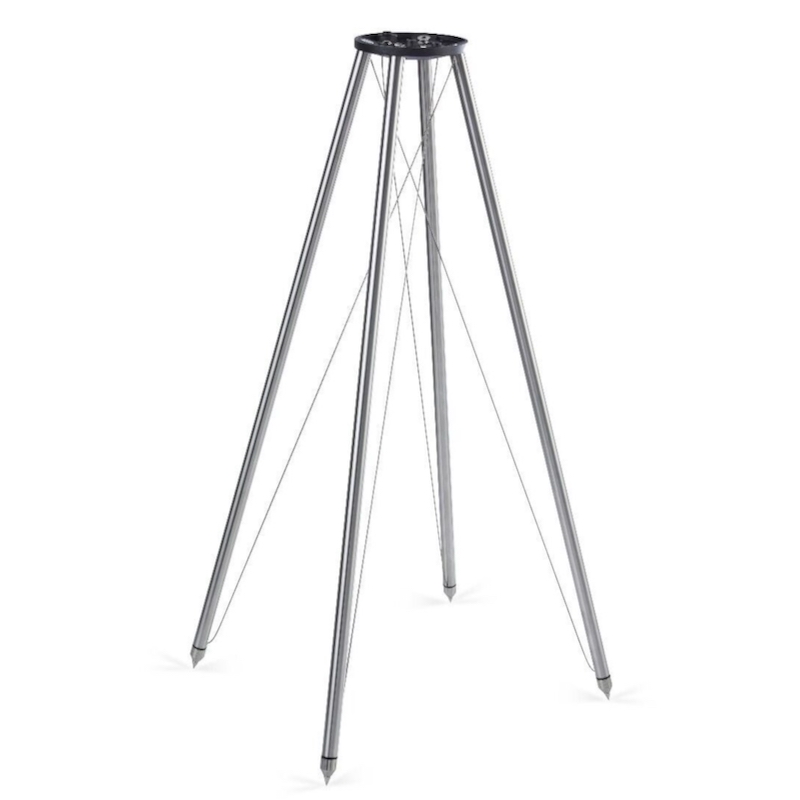

Q-Acoustics-Q-FS75-Tensegrity-Speaker-Floor-Stand
Q Acoustics Q-FS75 Tensegrity Speaker Floorstand
Concept 30 In Gloss Black
Q Active 200 Black Lifestyle

A known problem with conventional speaker stands is that their relatively large surface area acts as a re-radiating surface for the sound waves created by the drivers above them. Sound leaving the drive units will radiate uniformly in all directions and will reflect from any nearby surfaces – such as the speaker stand – with an accompanying phase shift causing constructive and destructive interference with the direct sound. Finite element analysis has shown how a real-world radiated sound field is affected by reflections from the surface of the different types of stand.

In the diagrams, traditional solid and steel column stands are compared to a Q Acoustics space frame design. The radiated sound field should look likeperfect ripples on a still pond after a stone is thrown into the water. As can be seen, the solid MDF (Figure 11) and column (Figure 12) designs re-radiate far more of the original loudspeaker signal and therefore contribute significant disturbance (red and yellow) to the ideal sound field when compared with the space frame design (Figure 13).

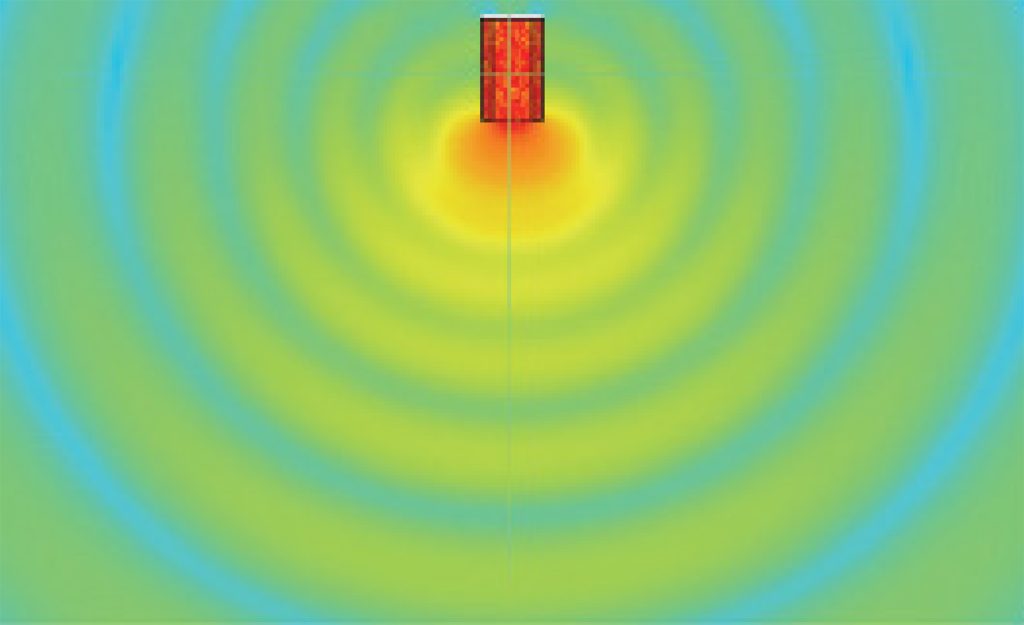

Figure 11

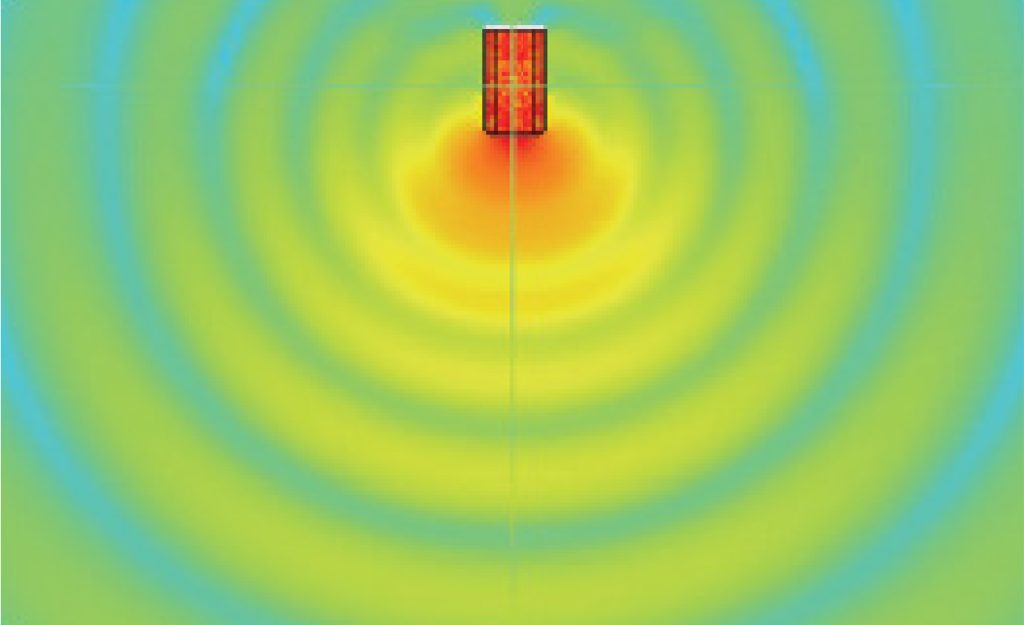

Figure 12

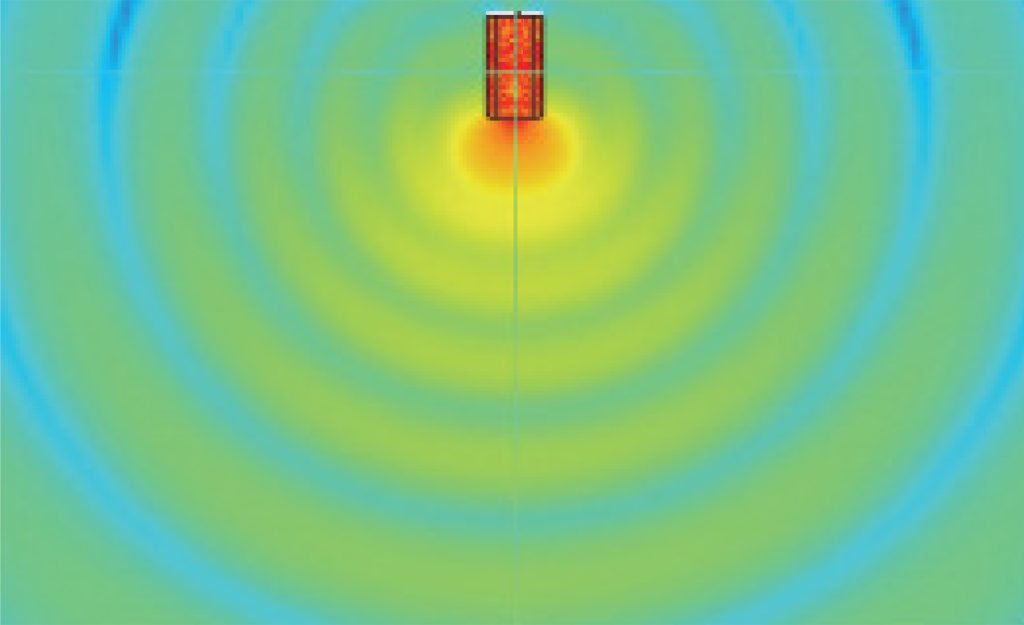

Figure 13

  • Tensegrity Stainless Steel
  • Pair
  • Weight: 5.5kg / 12.1lb Per Pair
  • Weight: 2.3kg / 5lb Per Stand
  • Dimensions H/W/D: 638 x 286 x 338mm / 25.1″ x 11.3″ x 13.3″ Per Stand
  • 2 x Demounted Speaker Stands
  • 2 x Top Plates

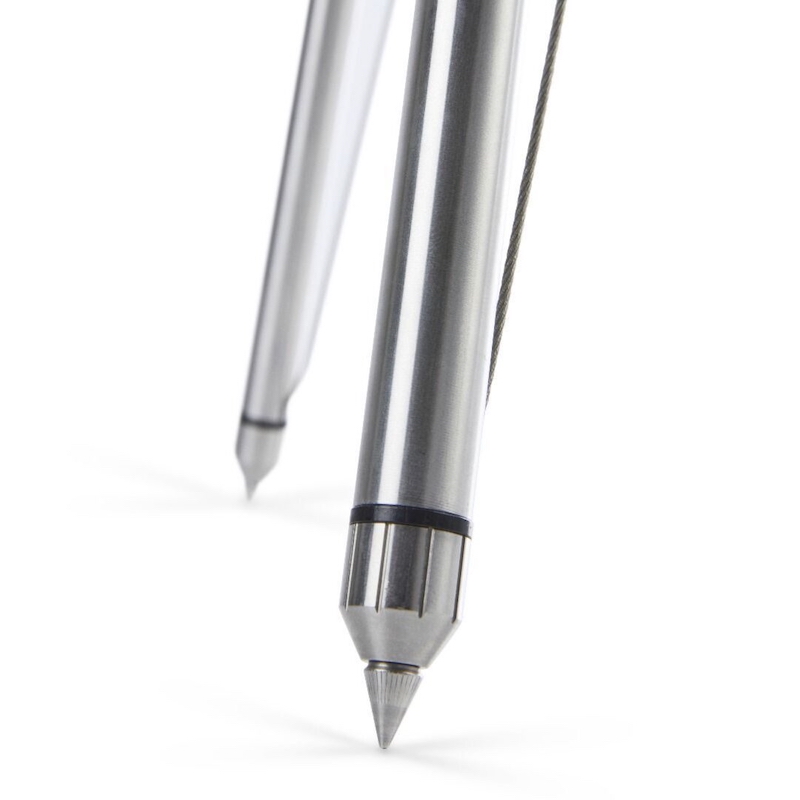

  • 8 x Spikes
  • 8 x Rubber Spike Covers
  • 2 x Top Plate Screws
  • 8 x Speaker Screws / 4 Speaker Bolts
  • 6 x Cable Clips
  • 1 x User Manual
